Jack H2-CZ12 is a heavy-duty, direct-drive walking foot sewing machine designed for precision on leather, upholstery, and thick fabrics. Featuring a built-in motor and energy-efficient speed control, it’s the ultimate workhorse for professional textile projects



Key Features:

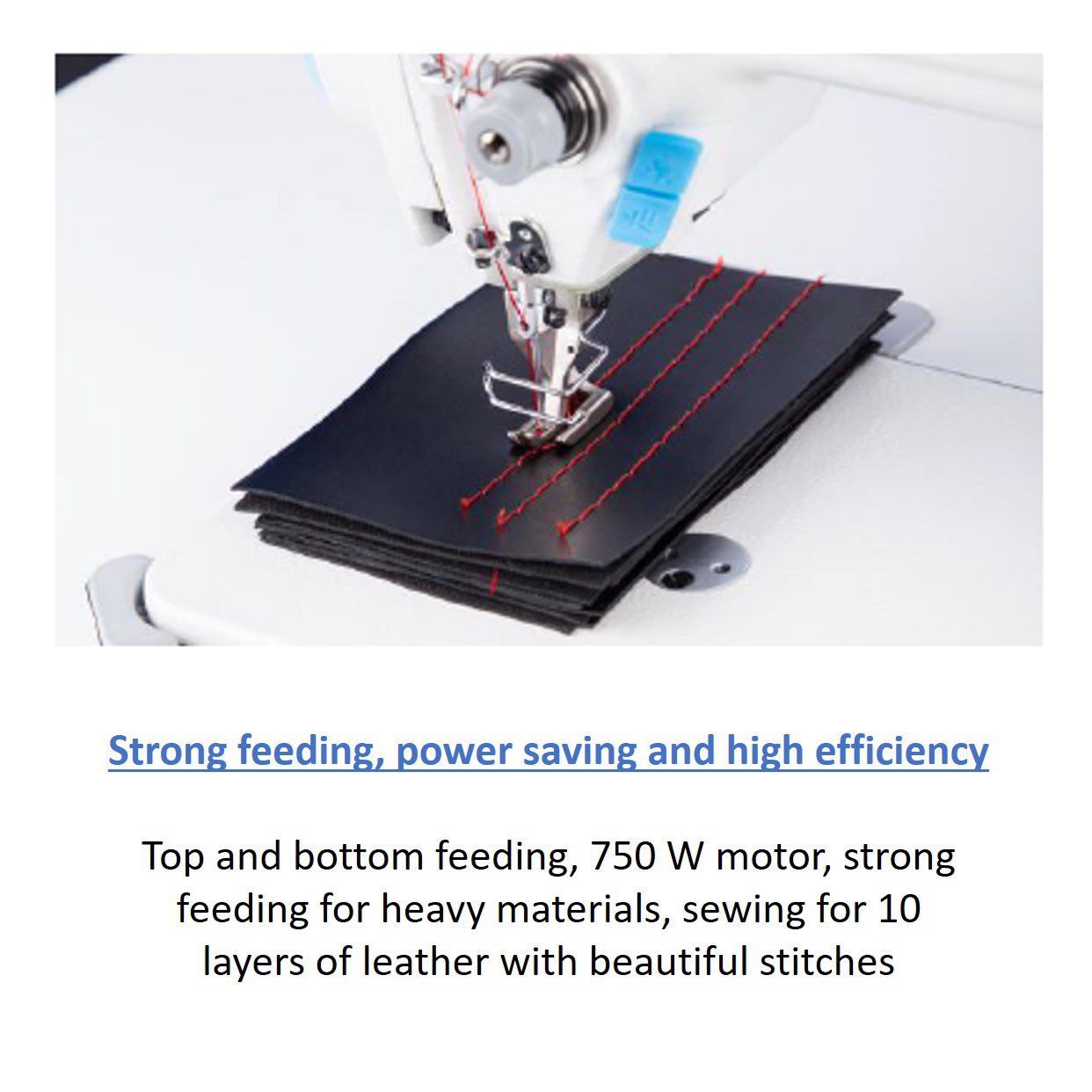

  • Top and Bottom Feed: The “walking foot” mechanism ensures that multiple layers of fabric—even slippery or heavy materials—are fed through the machine evenly without shifting.

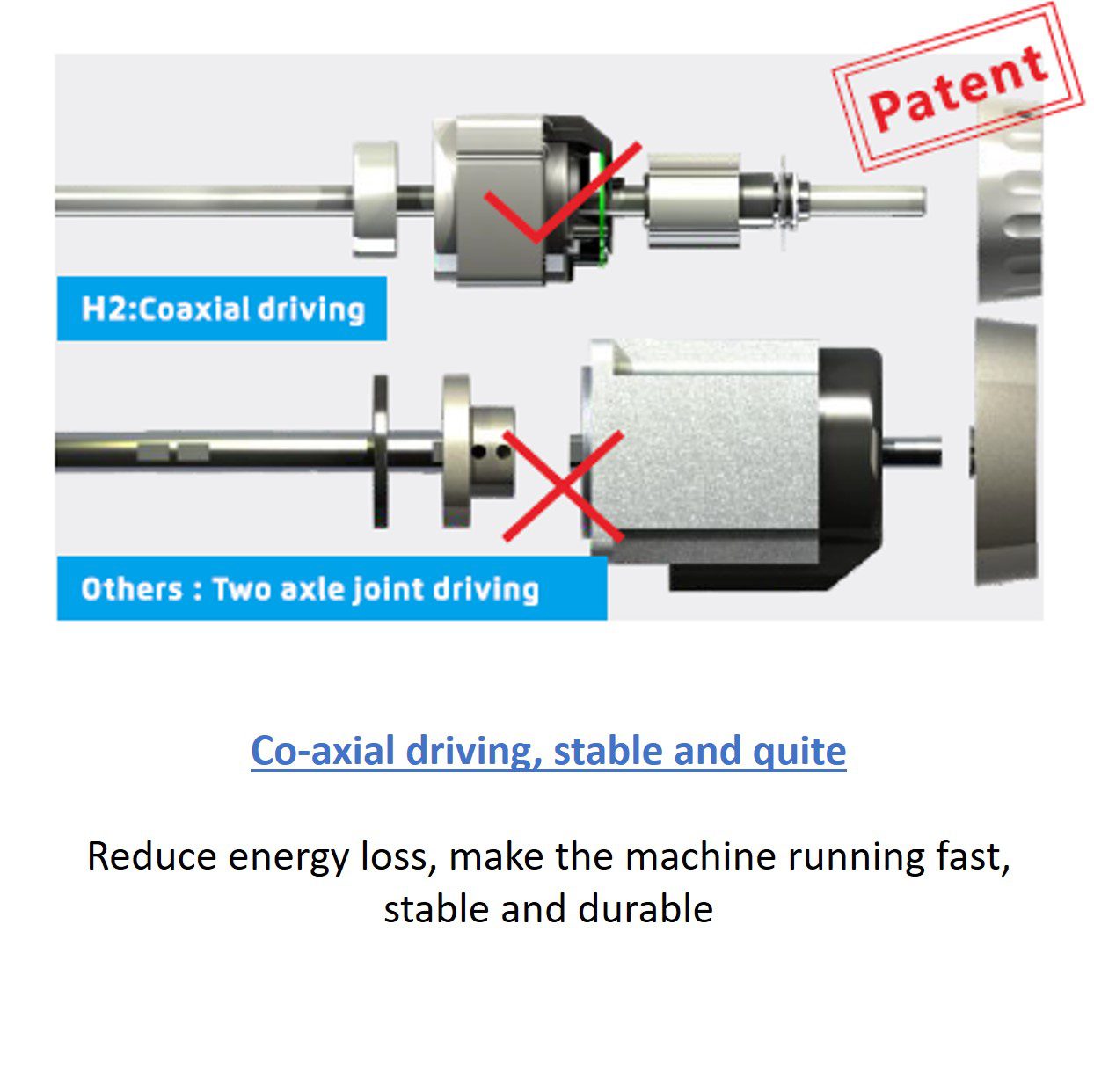

  • Integrated Design: It features a built-in direct-drive motor, which makes the machine significantly quieter, more energy-efficient, and easier to control compared to traditional belt-driven motors.

  • Heavy-Duty Capability: Specifically designed for medium to heavy fabrics, making it ideal for leather, upholstery, canvas, and denim.

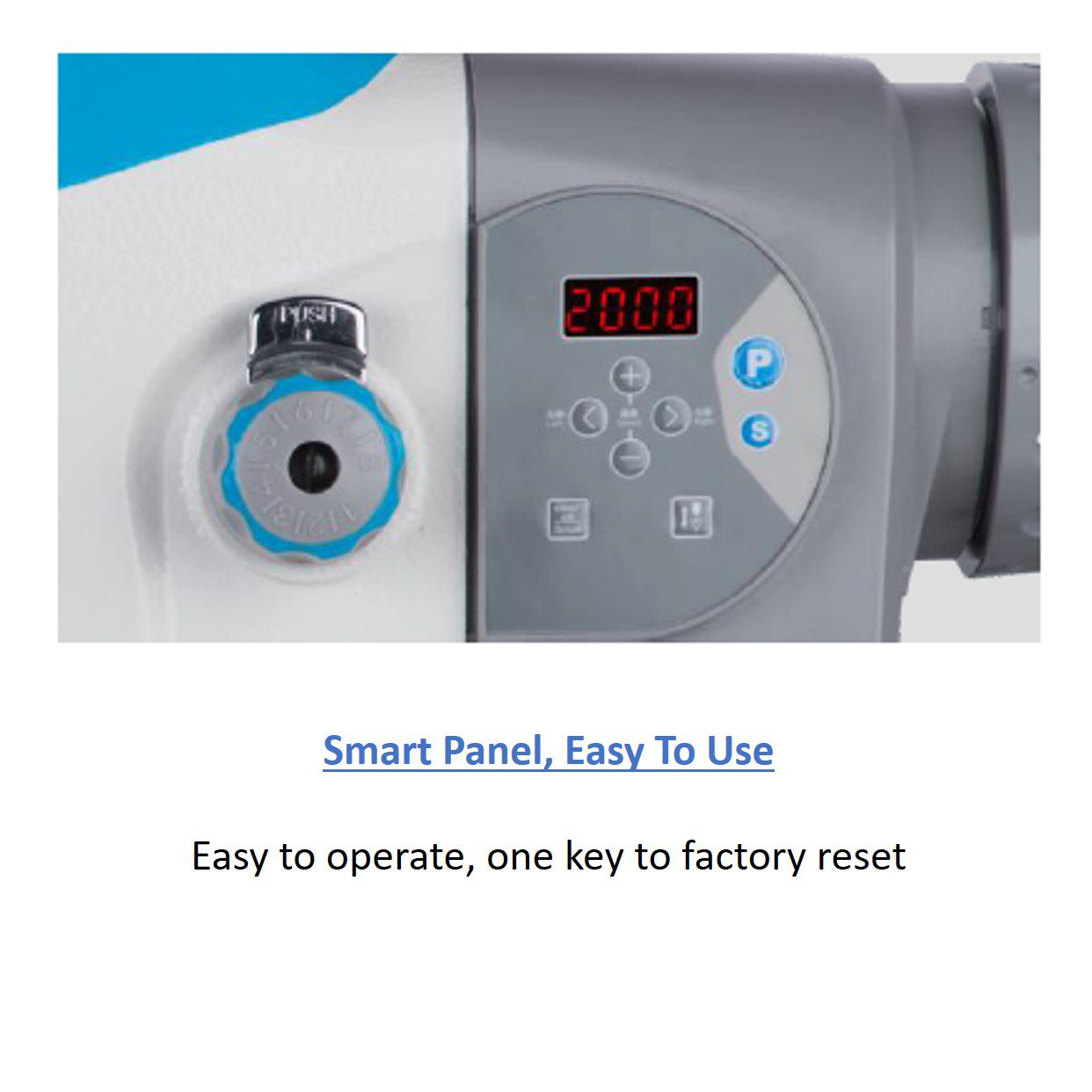

  • Smart Functions: It usually includes features like automatic needle positioning (up/down) and adjustable speed control to help with precision on tricky corners.



Technical Parameters:

Parameter Specification
Model Number H2-CZ12 (Large Stitch Variant)
Machine Type Single Needle Lockstitch
Feeding Mechanism Top and Bottom Feed (Walking Foot)
Motor Type 750W Integrated Direct Drive
Maximum Sewing Speed 2,000 – 2,200 SPM (Stitches Per Minute)
Maximum Stitch Length 12mm (Extended length for heavy-duty decor/binding)
Needle System DPx17 20-23# (Heavy Duty)
Max Presser Foot Lift 8mm (By hand) / 16mm (By knee lifter)
Hook Type Double Capacity Large Rotary Hook



Weight 60 kg
